EAS Installs Two Sites at ION Orchard Singapore with Audica Professional
Audica Professional MICROseries audio systems have been installed in two high quality
sites at the new ION Orchard complex in Singapore. The systems were designed and
installed in the Fish and Co. restaurant and at Epicentre, an Apple Premium Reseller
outlet, by Electro-Acoustics Systems Pte Ltd., Audica Professional’s Key Installation
Partner in Singapore.
Located at the gateway to Singapore’s most prestigious Orchard Road shopping strip,
ION Orchard’s award winning design was by leading architecture firm Benoy, who brought
us iconic malls such as the Bullring in Birmingham, UK. ION Orchard is the retail
component of the retail-cum-super-luxury-residential Orchard Turn, a prime landmark
project jointly owned and managed by Singapore’s CapitaLand Limited and Hong Kong’s
Sun Hung Kai Properties. The development is strategically situated above the Orchard
Mass Rapid Transit (MRT) station and will enjoy underground connectivity to nearby
buildings. When completed, the Orchard Turn development will boast over 640,000 square
feet of net letting space and luxury homes.

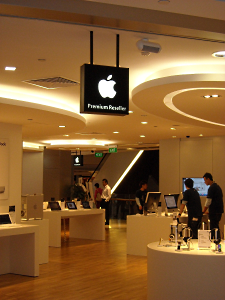

The Epicentre Apple store required a system with flexibility for its retail area
and two training rooms, with the ability for a common background music system for
all 3 zones or for the training rooms to operate completely independently, or linked
just to each other but not the main retail system. To provide this, Electro-Acoustics
Systems used an Audica Professional MICROzone controller/amplifier in each of the
3 zones and utilised its ‘Line-2’ facility, which provides a master in/out feed to
all units on Line-2, but with independent feeds on all other inputs.
The main retail area uses the master MICROzone, fed from a Biamp 301 mixer which
facilitates line and mic inputs. Three Audica Professional MICROpoint loudspeakers
are driven from the MICROzone’s built in 2-channel amplifier. An output from the
MICROzone also drives an Audica Professional 4-channel MICROplus power amplifier,
which powers nine Audica Professional MICROdot ceiling loudspeakers in a distributed
Each training room has a MICROzone, linked to the master on Line-2 for the BGM feed.
In these rooms the MICROzone is additionally controlled by an Audica Professional
WMR wall panel, which allows all MICROzone functions to be controlled via the panel
or by handheld infrared remote. The MICROzone’s built in amplifiers are then used
to drive a pair of MICROdot ceiling loudspeakers in each room. Another Biamp 301
mixer is used just for the training rooms and, via a Kramer VM-2N audio distribution
amp, can provide mic and line input to either or both rooms. A wall plate in one
of the rooms facilitates local input for the room it is located in, or for both.
“I was really interested to see the configuration that EAS had employed to provide
the Epicentre solution”, commented Audica Professional’s Derek West. “Simple yet
flexible input to provide common or local feed as required to multiple zones was
key to our thinking for the facilities of the MICROzone. This is a unique and very
neat audio and control solution. With the store being designed for the Apple products
it sells, the Audica Professional loudspeakers also provide a design statement very
much in keeping with the stylish hi-tech aesthetics”.
Fish & Co. is a chain of premium fish restaurants, with locations throughout Asia
specialising in the finest ingredients served in an atmosphere that is designed to
feel casual and relaxed. Carefully co-ordinated colour schemes, and use of sea ornaments,
give a cheerful nautical setting. Requiring a single zone system, Electro-Acoustics
Systems installed an Audica Professional MICROzone driving four surface-mount MICROpoint
loudspeakers, which provide good BGM quality to 70Hz. Input for the continuous playback
of the restaurants own music selection is provided by a 5-disc Marantz CC4001.
